Sport (M80/M120) Limited Space Hydraulic Trim Systems

• Sport batwing tab design provides 30% more lift
• Get on plane fast, and stay on plane at intermediate speeds
• Correct listing and uneven loads
• Improve visibility and safety
• Reduce pounding and eliminate porpoising
• Low maintenance, long-term value, and ease of service
• Exclusive transom mount interlocking tab design (Bottom and piano hinge mounts are available
  for custom order)

• (2) Trim plane assemblies
• (2) Hydraulic actuators (A1200SRC)
• (1) Hydraulic power unit (V351HPU1)
• Hydraulic tubing and hardware
• Optional helm control (See the Control Options tab)

Sets with Rocker Control

• M80 (8″ x 10″ span x chord)
• M120 (10″ x 12″ span x chord)

Sets with Indicator Control

• M80EIC (8″ x 10″ span x chord)
• M120EIC (10″ x 12″ span x chord)

Sets with AutoTrim Pro

• M80ATP (8″ x 10″ span x chord)
• M120ATP (10″ x 12″ span x chord)

Are you a reseller needing a high resolution image of this product? Simply visit our Image Database and search for the part number or product name.

To find documentation for this product, visit our Owner/Install Manual Library and enter in the part number or product name in the search bar. Here you’ll be able to locate general product information, wiring schematics, installation drilling templates etc.

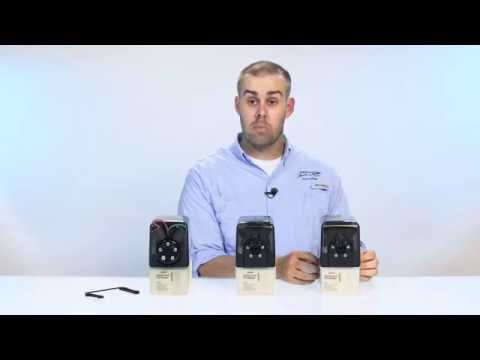

 Hydraulic Power Unit

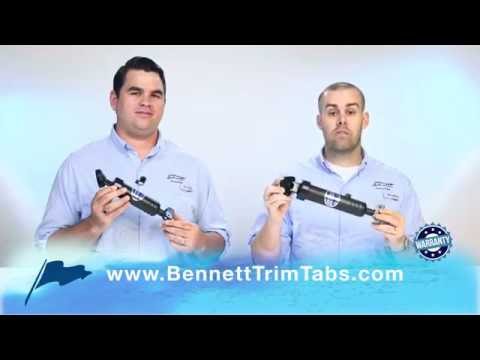

 Hydraulic Actuators
